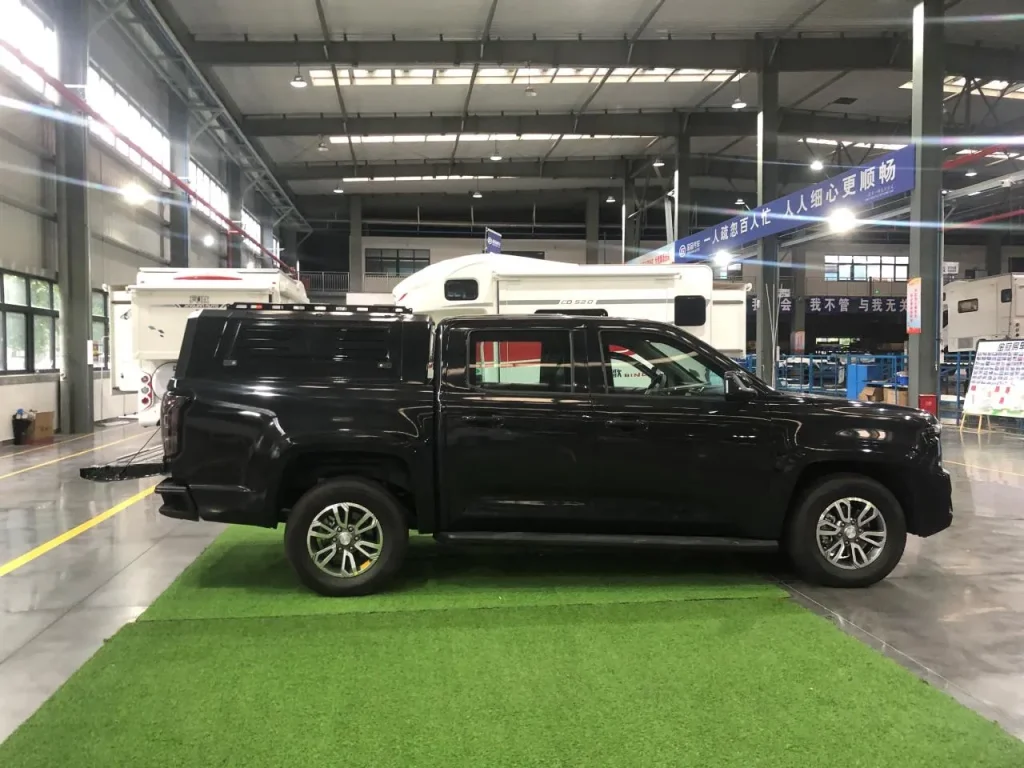

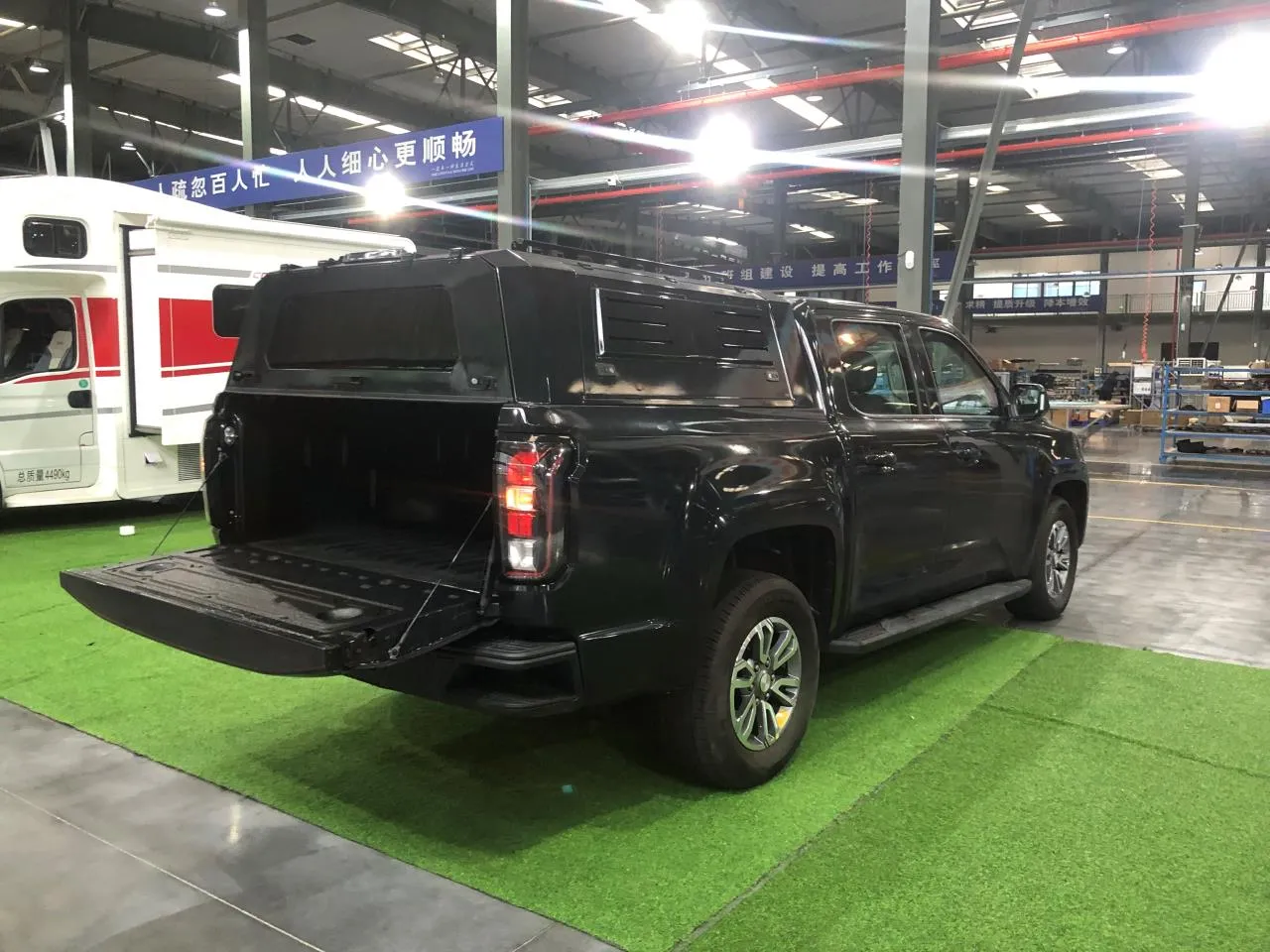

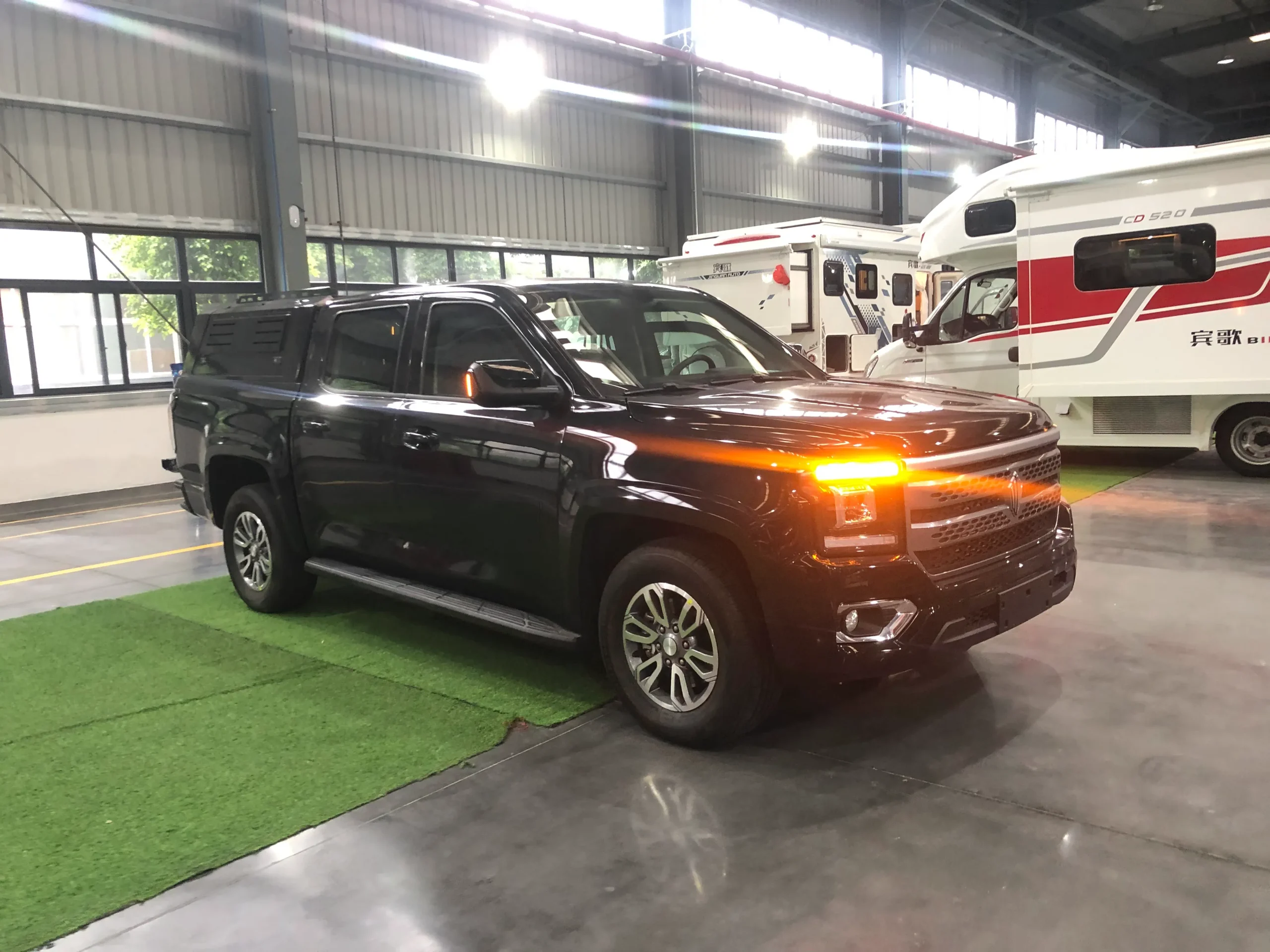

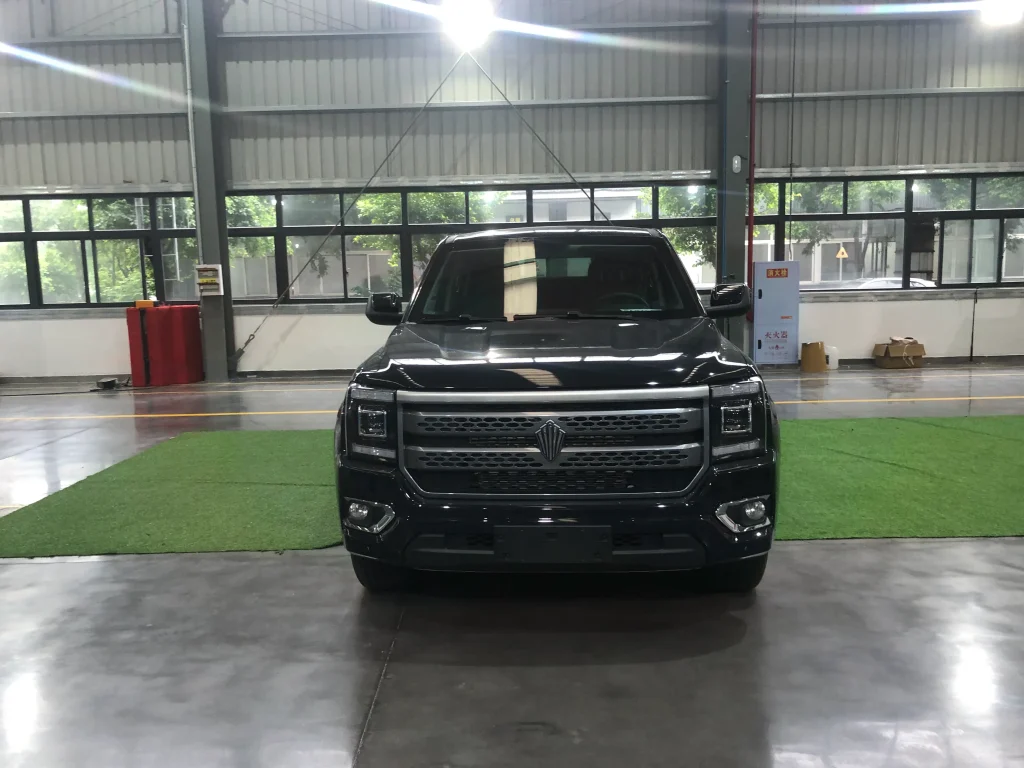

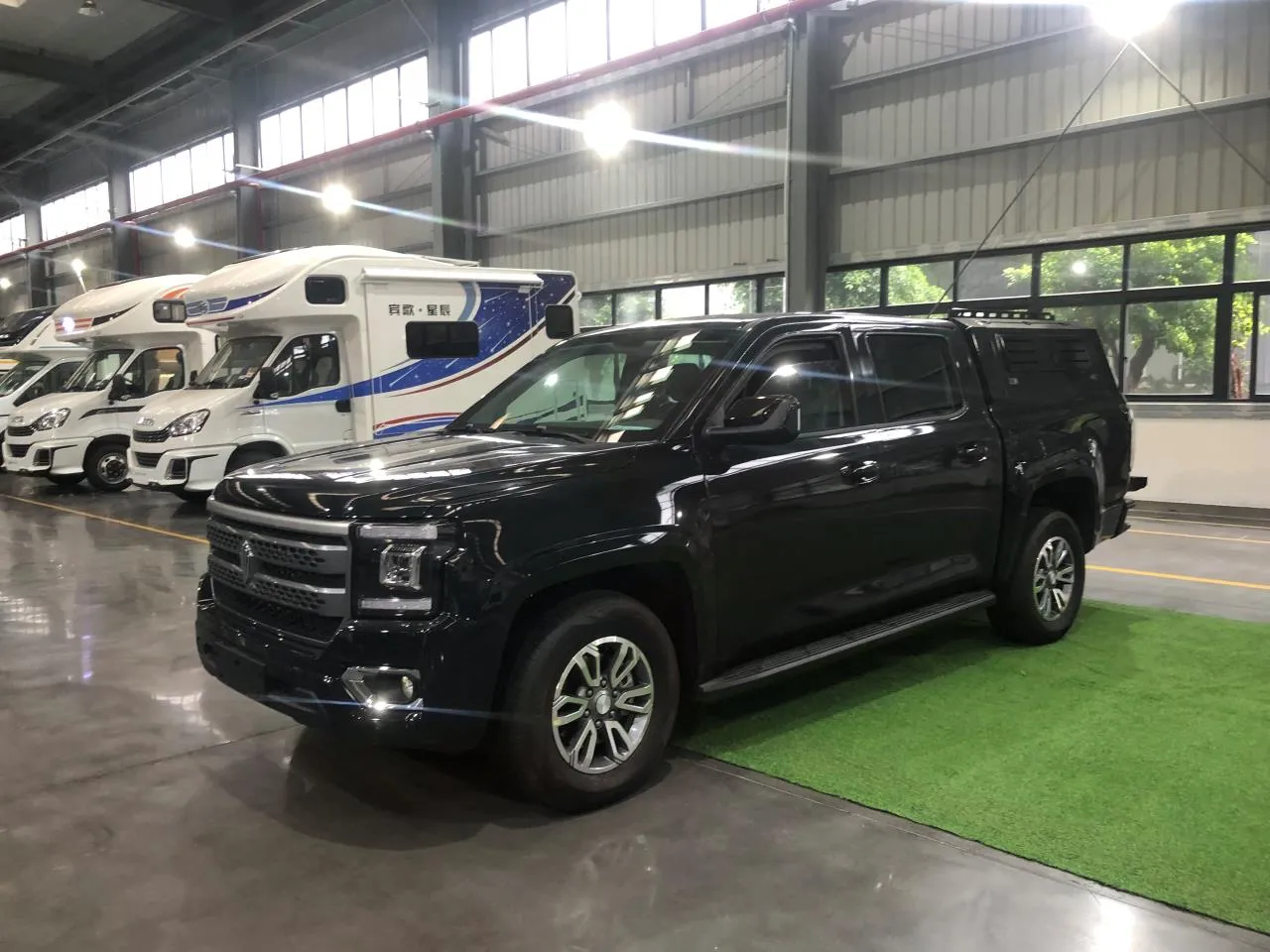

Armored Pickup – Jinguan JMC Dadao
- Certified EN1522 B4+ ballistic protection against AK47 rifles
- Full perimeter armored steel and bulletproof glass
- High-performance diesel engine with 450 N·m torque
- Maximum speed 175 km/h, gradeability 40°
- Run-flat tires and reinforced structural components
- Designed for 5 passengers, balancing safety and comfort
For product pricing, customization, or other inquiries:
Armored Pickup – Jinguan JMC Dadao Description
The Jinguan JMC Dadao Armored Pickup is a high-performance multi-purpose defense vehicle designed for maximum protection, reliability, and adaptability. Built on the JX1037TS0H6 chassis and powered by the JX4D23A6L diesel engine, it delivers a robust output of 130kW / 3200rpm and a maximum torque of 450 N·m / 1500–2400rpm, ensuring powerful driving performance even under heavy load conditions.
Protective:
Engineered to meet EN1522 B4+ ballistic protection standards, the vehicle is resistant to 7.62x39mm lead core AK47 rifle rounds. Its armored structure includes reinforced steel plating on all sides of the passenger compartment, with roof and floor protection at B4 level. Combined with EN1063 B4+ bulletproof glass, reinforced door hinges, auxiliary limiters, and a fuel tank & battery protection system, the vehicle ensures superior survivability in hostile environments.
Driving performance:
The pickup maintains strong mobility with an automatic transmission (AT), front independent double-wishbone suspension, and a rear leaf spring suspension system, enabling stable handling across rugged terrains. With a top speed of 175 km/h, a 40° maximum climbing gradient, and a minimum ground clearance of 220 mm, it balances heavy-duty protection with reliable off-road performance.
Additional safety features:
Additional safety features include run-flat tire support system, armored fuel tank, battery protection, and a customized reinforced rear hatch. The vehicle accommodates five passengers and supports both security and civilian applications, making it ideal for military, law enforcement, government, and private security sectors.
Jinguan JMC Dadao Armored Pickup Parameters
| Basic Parameters | Vehicle Name / Type | Armored Vehicle |
| Curb Weight (kg) | 2860 (with 5 passengers: 3185) | |
| Protection Level | EN1522 B4+ (against AK47 rifles) | |
| Gross Vehicle Weight (kg) | 3495 | |
| Bullet Caliber / Type | 7.62×39 Lead Core | |
| Payload (kg) | 320 | |
| Engine Parameters | Engine Model | JX4D23A6L |
| Displacement (cc) | 2296 | |
| Max Power (kW/rpm) | 130 / 3200 | |
| Max Torque (N·m/rpm) | 450 / 1500–2400 | |
| Emission Standard | GB18352.6-2016 China VI | |
| Fuel Type | Diesel | |
| Vehicle Dimensions | Length (mm) | 5450 |
| Width (mm) | 1935 | |
| Height (mm) | 1872 | |
| Wheelbase (mm) | 3270 | |
| Track Width (Front/Rear, mm) | 1620 / 1620 | |
| Minimum Ground Clearance (mm) | 220 | |
| Minimum Turning Radius (m) | 5.9 | |
| Approach / Departure Angle (°) | 28 / 26 | |
| Max Gradeability (°) | 40 | |
| Top Speed (km/h) | 175 | |
| Tire Model | 265/65R17 | |
| Seating Capacity | 5 persons | |
| Chassis Parameters | Chassis Model | JX1037TS0H6 |
| Transmission | Automatic (AT) | |
| Brake System | Front & Rear Disc Brakes | |
| Suspension (Front/Rear) | Front: Double Wishbone Independent Suspension | |
| Rear: Leaf Spring Non-Independent Suspension |
| No. | Item | Specification & Parameters | Qty | Remarks |
| 1 | Bulletproof Steel Plates | EN1522 B4+ (passenger compartment sides), B4 (roof & floor) | 1 set | — |
| 2 | Bulletproof Glass | EN1063 B4+ | 1 vehicle set | — |
| 3 | Power Windows (Armored) | Driver & Co-driver doors, EN1063 B4+ | 1 set | — |
| 4 | Fuel Tank Protection | EN1522 B4+ | 1 set | — |
| 5 | Battery Protection | EN1522 B4+ | 1 set | — |
| 6 | Run-Flat Tire Inserts | Internal support system | 5 sets | — |
| 7 | Reinforced Door Hinges | Customized by Jinguang | 1 vehicle set | — |
| 8 | Auxiliary Door Limiters | Customized by Jinguang | 1 vehicle set | — |
| 9 | Rear Hatch Cover | Customized by Jinguang | 1 set | — |
