Jinguan · Binge Diesel 4X4 Pickup RV
| Length × Width × Height (mm): | 5900 × 2200 × 2920 mm |
| Tire Specifications： | 265/65R17 |
| Wheelbase(mm)： | 3470 |
| Maximum Gross Weight (kg)： | 3495 |
| Curb Weight (kg)： | 3200 |
| Rated Passenger Capacity (people)： | 4 |
For product pricing, customization, or other inquiries:

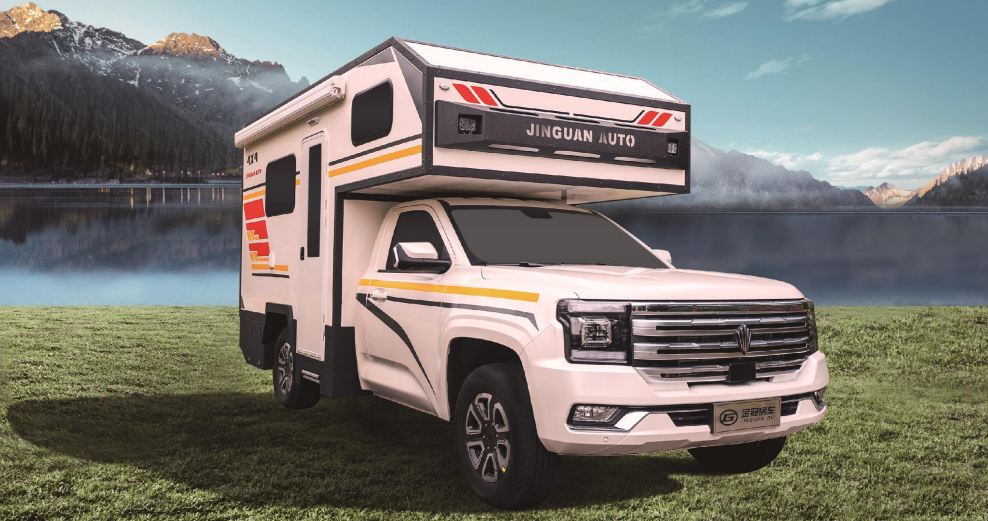

The whole vehicle adopts a mid-forehead design, which is atmospheric and smooth. The advantage of the mid-forehead is that it has both the spacious space of a large forehead and the smoothness of a small forehead. The body is made of imported FRP materials, aluminum alloy frame composite body structure and structural riveting technology, which is heat-insulating and corrosion-resistant and the body weight is 10% lighter (single riveting force reaches 1.7 tons)
The side of the car is richly equipped with an external shower, a pull-out diesel stove, an outdoor dining board, outdoor lighting, manual awnings, Electric pedal, RV-specific multifunctional European doors, external power sockets, etc., and an external water inlet (15 meters of water pipes are added with filters) to meet the various needs of outdoor travel.
Intelligence has also become a major trend in RVs. This car is also equipped with a rear cabin central integrated control system, which can independently control the interior lighting, reading lights, and atmosphere lights in different areas.

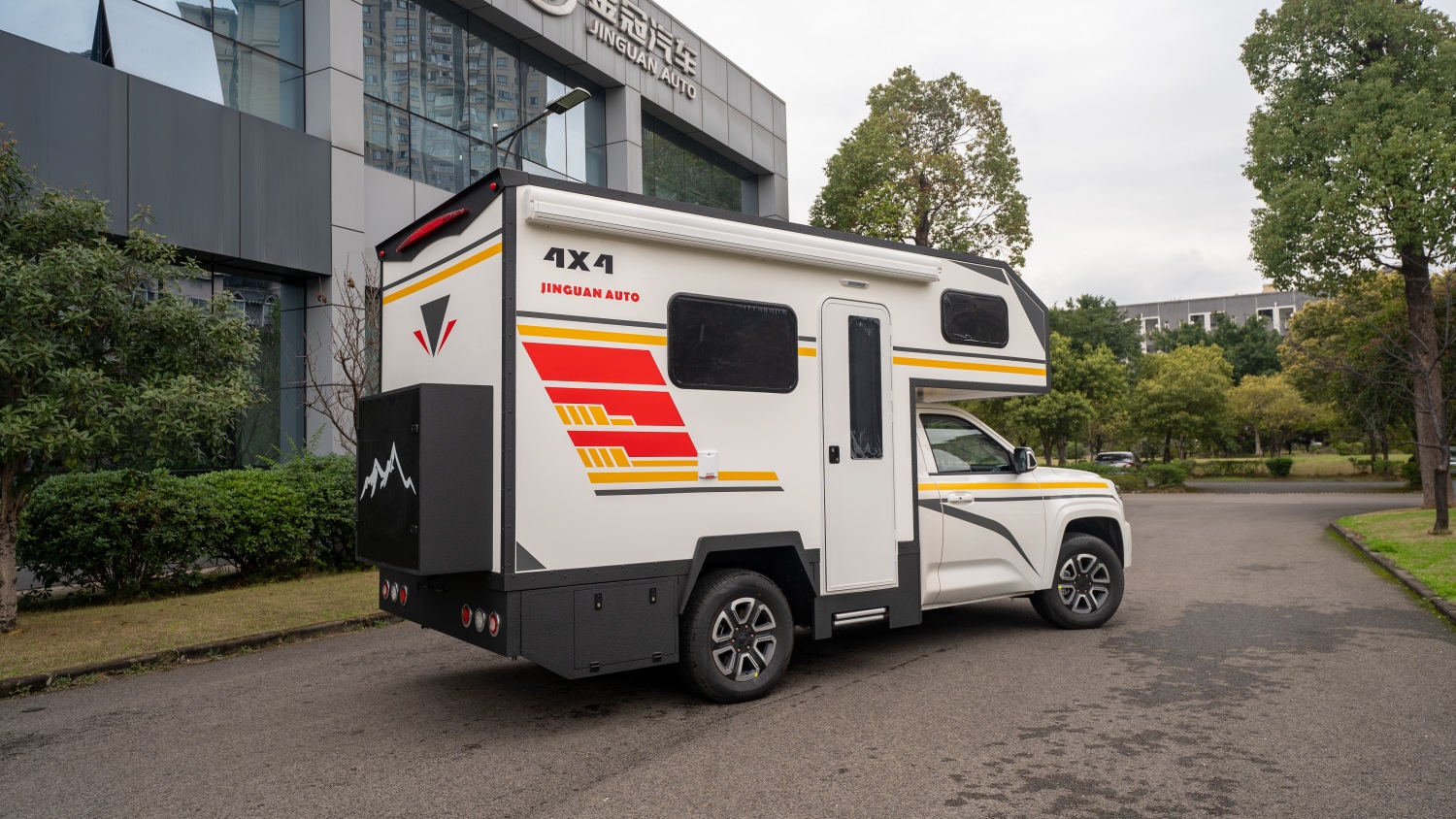

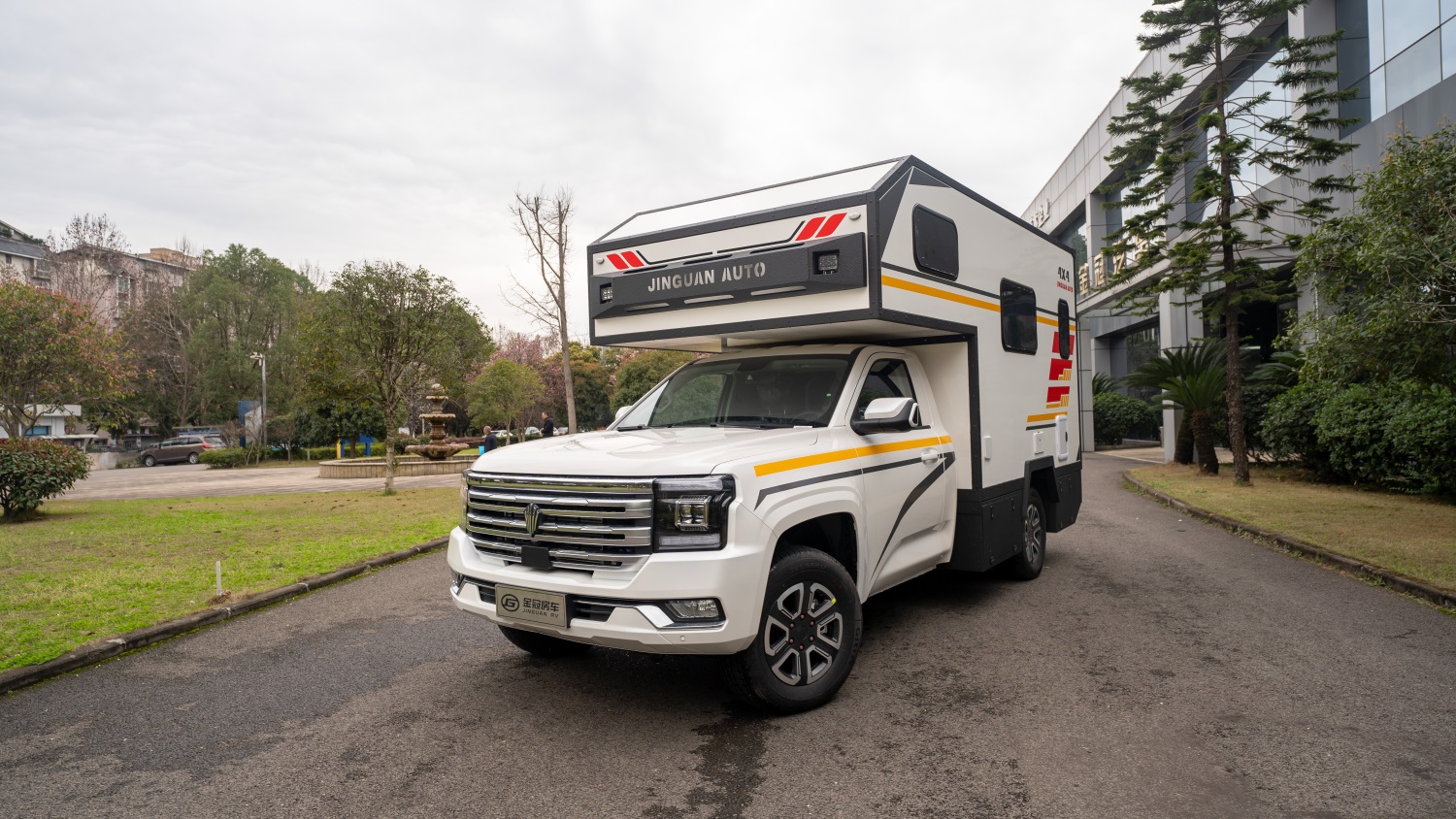

Appearance Color

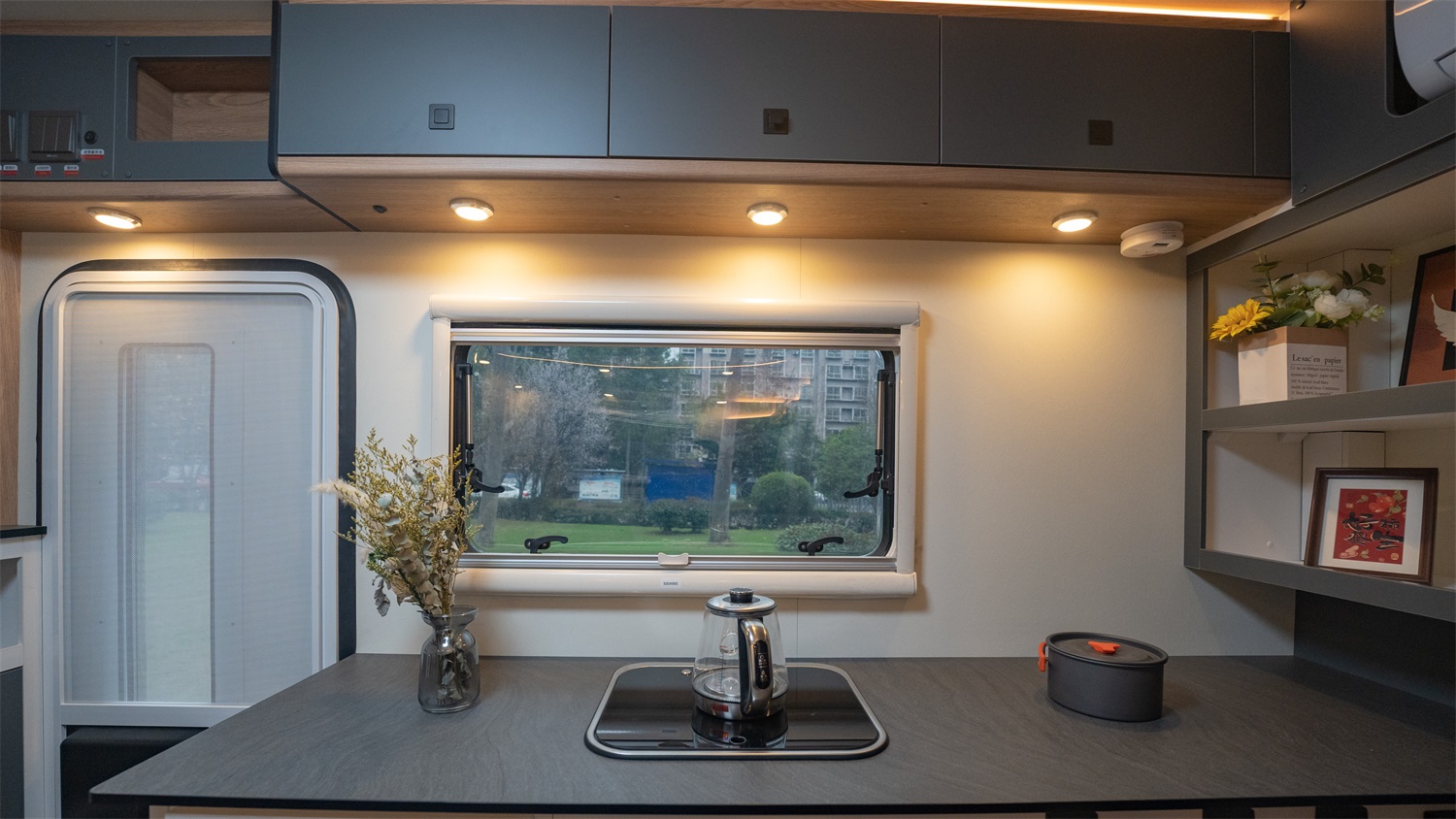

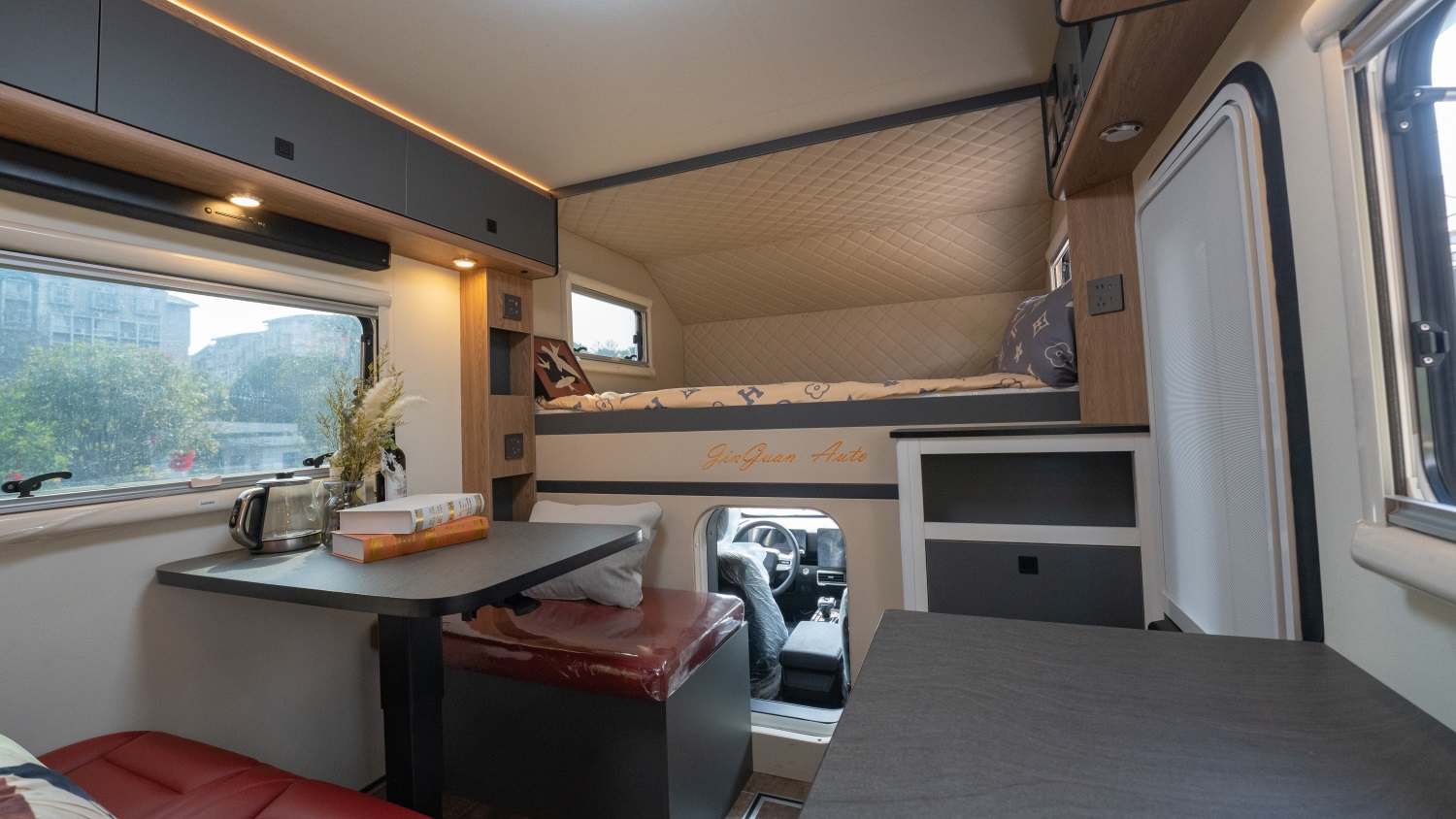

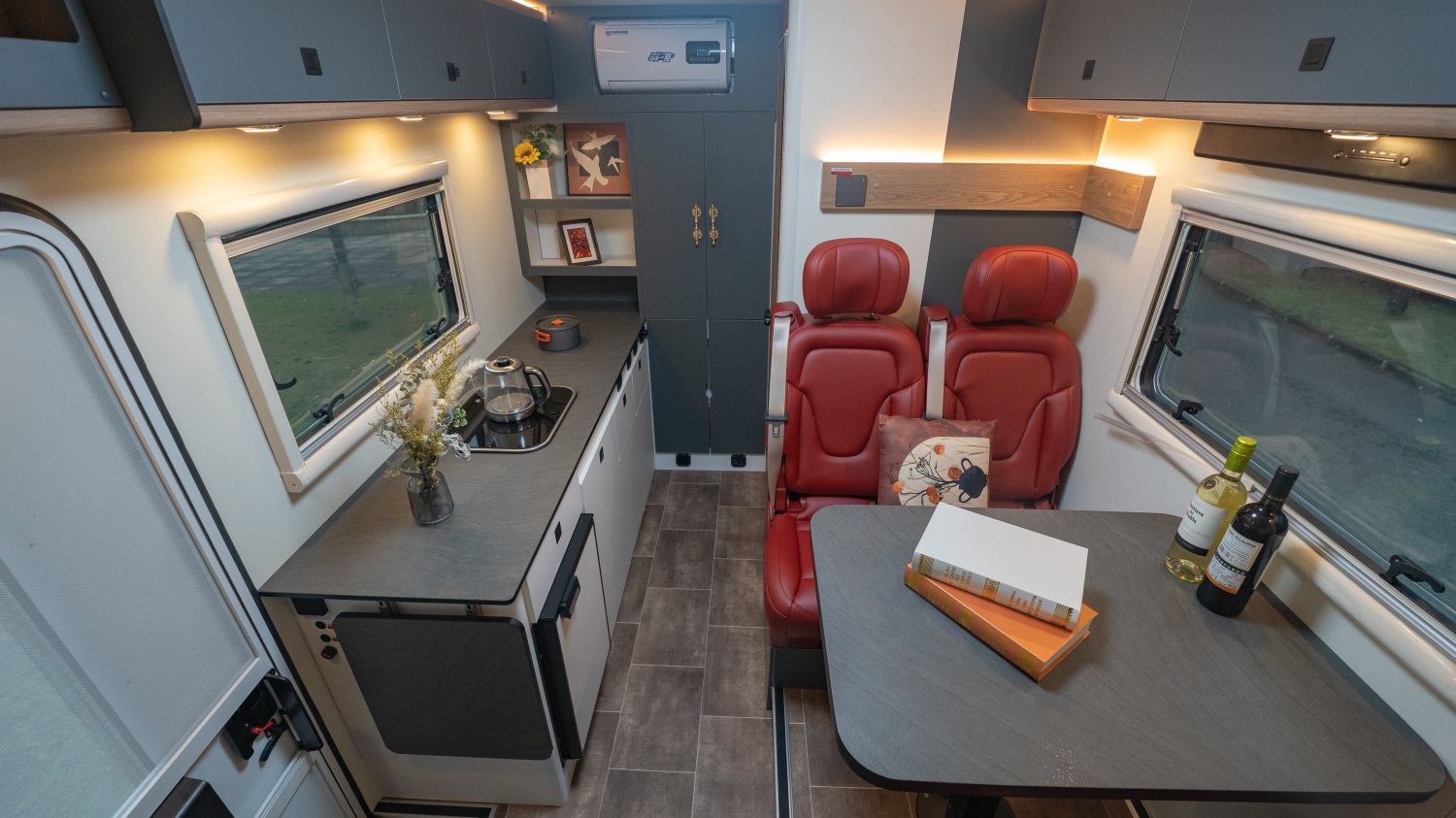

Interior Design
Basic Information
| Category | Item | Standard Configuration | Remark | |
| Complete vehicle | Long | 6200(5902) | The dimensions in brackets are without the spare tire and trunk | |
| Width | 2200 | |||
| Height | 2920 | |||
| Tire specifications | 265/65R17 | Subject to the actual chassis specs | ||
| Wheelbase(mm) | 3470 | |||
| Maximum total mass (kg) | 3495 | |||
| Curb weight(kg) | 3300(3250) | The dimensions in brackets do not include spare tire and trunk | ||
| Rated number of passengers (persons) | 4 | |||
| Maximum speed (km/h) | 175 | |||
| Fuel tank capacity (L) | 80 | |||
| Engine | Displacement (ml) | 2296 | ||
| Maximum power (kW) | 130 | |||
| Interior | Clean water tank capacity (L) | 117 | ||
| Gray water tank capacity (L) | 70 | |||
| Black water tank capacity (L) | 18 | |||
| Number of beds (persons) | 2 | |||
| Forehead bed (mm) | 1950×1480 | |||
| Bathroom(mm) | 900×900 | |||
| Category | Item | Configuration | Remark | Options |
| Chassis | Jiangling Dadao pickup single row second class chassis | ● | Dual generators | |
| Automatic transmission (8AT) | ● | |||
| External facilities | Electric step | ● | First level backspin | Secondary backspin |
| The windows are equipped with mosquito nets and day and night curtains | ● | |||
| Double-layer thermal insulation acrylic windows for RVs | ● | |||
| Middle door screen door | ● | |||
| Spare tire rack + spare tire box | ● | |||
| Top exhaust fan | ● | |||
| Tool Box Lockers | ● | |||
| Awning | ● | Manual 3 meters | ||
| Living facilities | Wardrobe | ● | ||
| Rear cabin sofa | ● | |||
| Two-person rear passenger chair | ● | |||
| Liftable dining table | ● | |||
| Luxurious leather-covered seats | ● | |||
| Lightweight and eco-friendly wooden furniture | ● | |||
| Hot and cold water integrated faucet | ● | |||
| Car Refrigerator | ● | 49L | ||
| Wash basin | ● | |||
| Induction cooker | ● | |||
| Integrated sanitary shower room | ● | |||
| Toilet | ● | RV special rotating toilet | ||
| Fresh water tank | ● | 117L | ||
| Water Heater | ● | 50L | ||
| Electrical facilities | External AC charging system (external charging cable) | ● | New energy charging interface | |
| 220V power sockets in kitchen and living room | ● | |||
| Independent heating | ○ | |||
| Auxiliary battery (for rear cabin) | ● | 48V, 200Ah lithium battery | ||
| Inverter | ● | 48V, 6kW | ||
| Domestic wastewater tank | ● | 70L | ||
| Lighting | ● | |||
| Mood Light | ● | |||
| Searchlight | ● | |||
| Front cabin navigation and reversing camera | ○ | |||
| Parking single cooling inverter air conditioner | ● | Wall-mounted | ||
