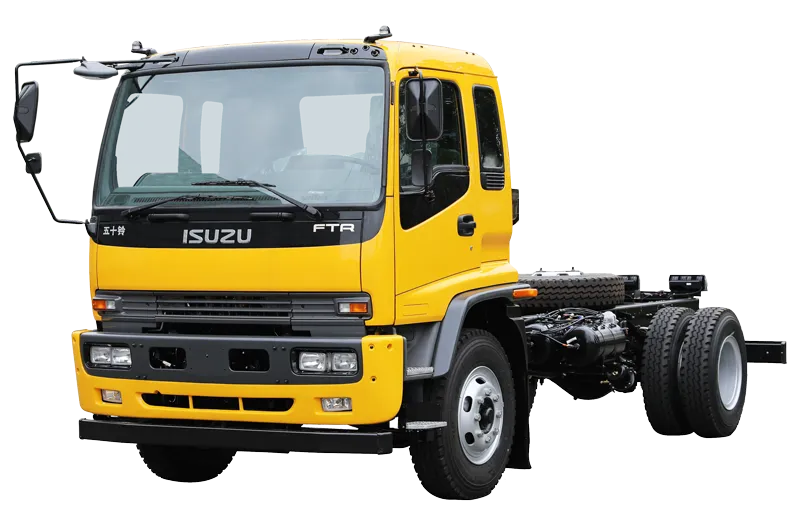

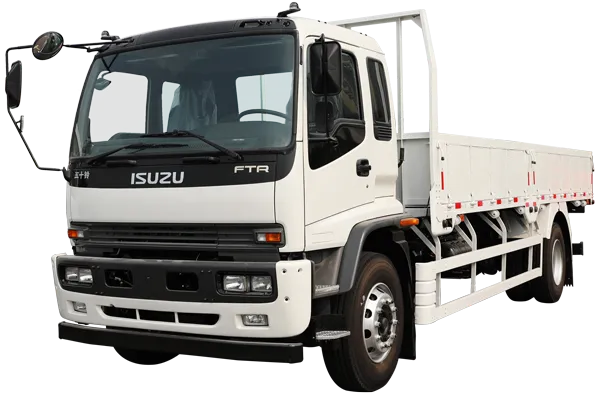

ISUZU FTR
Engine Model: | 4HK1TC50 |
Fuel Type: | Diesel |
Displacement: | 5193 |
Engine power: | 151 |
Torque: | 637 |
Transmission Model: | MLD-6Q |
Gross mass(kg): | 16000 |
For product pricing, customization, or other inquiries:
The world’s leading ISUZU 4H engine: it adopts Japan Denso electronically controlled high-pressure common rail system, which can produce stable high fuel injection pressure at low and high engine speeds, with better fuel atomization, more complete combustion, better dynamics, lower emissions, smoother operation and lower noise.

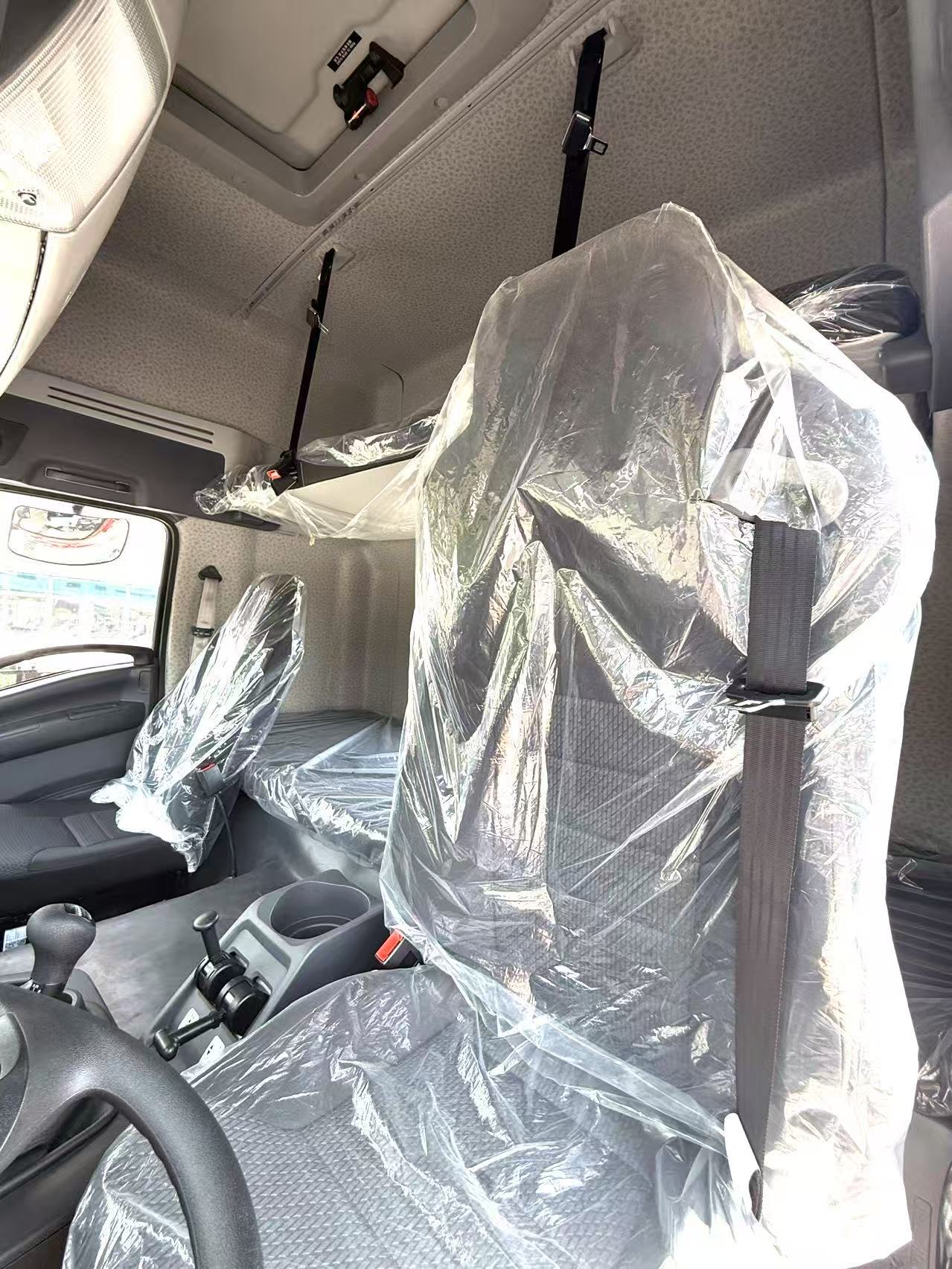

Cab: The cab adopts high-strength galvanized steel plate and closed structure, forming an effective anti-collision protection zone to protect the safety of drivers and passengers.
ISUZU high-quality chassis adapts to various modifications: rich engine power specifications, wheelbase series, load tonnage combines more than 10 kinds of modified chassis, which can satisfy the modification needs of all kinds of top-loading.
Frame: high load capacity frame: 258×80×10 specifications, the overall U-shaped structure, both to meet the heavy-duty requirements, but also to meet the needs of various modifications.
Front axle: the overall end-fist F063 front axle produced by the world’s advanced forging equipment and technology, with strong load capacity, maximum load capacity of 6.3 tons, stable and reliable quality.
Rear axle: RT210 rear axle produced by the world’s advanced stamping, welding, machining and assembly production line and process, with a carrying capacity of 21 tons, can meet the user’s heavy-duty requirements.
Steering maneuverability: Equipped with hydraulic power steering device, scientifically designed steering trapezoidal shape makes steering operation light. The steering wheel angle and height can be adjusted, so that drivers of all shapes and sizes are comfortable to operate; throttle pedal manipulation: light, labor-saving, easy to manipulate; gearshift manipulation: light, labor-saving, clear gear.
Appearance Color
Basic Information
Engine Model: | 4HK1TC50 |
Fuel Type: | Diesel |
Displacement: | 5193 |
Engine power: | 151 |
Torque: | 637 |
Transmission Model: | MLD-6Q |
Gross mass(kg): | 16000 |
Total mass(kg): | 7,025 |
Load capacity(kg): | 10,650 |
Wheelbase(mm): | 5550 |
Cab Type: | Half-row |
Number of passengers in cab: | 3 |
Outline Length(mm): | 8980 |
Outline Width(mm): | 2,550 |
Outline height(mm): | 3,995 |
Cargo Box Volume(mm): | 6,520 |
Interior dimension width(mm): | 2460 |
Interior dimension of cargo box height(mm): | 600 |
Front wheelbase(mm): | 1960 |
Rear wheelbase(mm): | 1855 |
Front overhang(mm): | 1335 |
Rear overhang(mm): | 2095 |
Axle load(kg): | 6000/10000 |
Maximum speed: | 105 |
