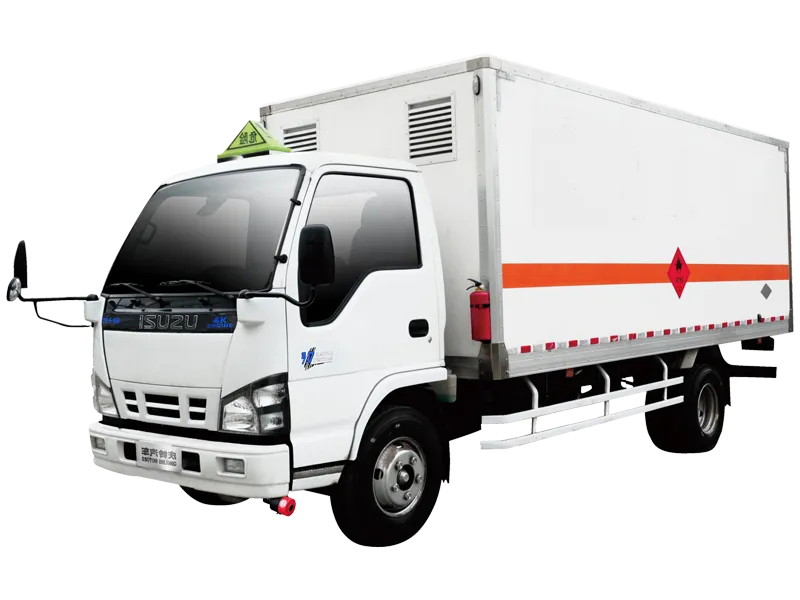

ISUZU Hazardous Chemical Vehicle

Engine model 4HK1TC51
Fuel type: diesel
Displacement 5193
Engine power 141
Torque 513

For product pricing, customization, or other inquiries:

Appearance Color

Description

The carriages make extensive use of aluminum alloy and composite materials to achieve scientific lightweighting while ensuring strength, reducing vehicle weight and fuel consumption. At the same time, the structure of the compartment is designed to be sturdy and can effectively resist external impacts, preventing the goods from being damaged or leaking due to collision during transportation.

Leakage alarm: The cab is equipped with a leakage alarm, which is connected to the sensor in the compartment. Once the leakage of hazardous chemicals is detected, the alarm will sound immediately to remind the driver to activate the emergency handling plan. At the same time, the alarm is also connected to the GPS system, real-time transmission of vehicle location, so that the vehicle monitoring center to grasp the situation and organize emergency rescue.

Brake Shoe Wear Alarm and Driver Seat Belt Alarm: Presented in the dashboard in the form of a fault light, it reminds the driver to pay attention to brake shoe wear to ensure that the braking system is always in a good working condition; at the same time, it urges the driver to fasten the seat belt to protect his own safety.

Flat Tire Emergency Device and Tire Pressure Monitoring: ISUZU DGVs equipped with vacuum tires are installed with flat tire emergency device and tire pressure monitoring system. When the vehicle tires are seriously out of pressure, the flat tire emergency device can make the steering and braking of the vehicle still controllable, and the driver can safely drive the vehicle to a stable stop; the tire pressure monitoring system monitors the tire pressure in real time, and timely alarms are issued once an abnormality is detected, which allows the driver to prevent tire blowout accidents in advance.

Basic Information

Engine model 4HK1TC51
Fuel type: diesel
Displacement 5193
Engine power 141
Torque 513

Carrying capacity

Gross mass(kg)9975
Total mass(kg)5205/4905
Load capacity(kg)4575/4875
Wheelbase(mm)5200
Cab type: single row
Number of passengers permitted in the cab: 3
Outline length(mm)8955
Outline dimension width(mm)2346
Outline height(mm)3380
Inside dimension of cargo box(mm)7028
Interior Dimension(mm)2278
Interior dimension of cargo box height(mm)2215
Front wheelbase(mm)1680
Rear wheelbase(mm)1650
Front overhang(mm)1110
Rear overhang(mm)2645
Axle load(kg)3350/6625
Maximum speed 80
