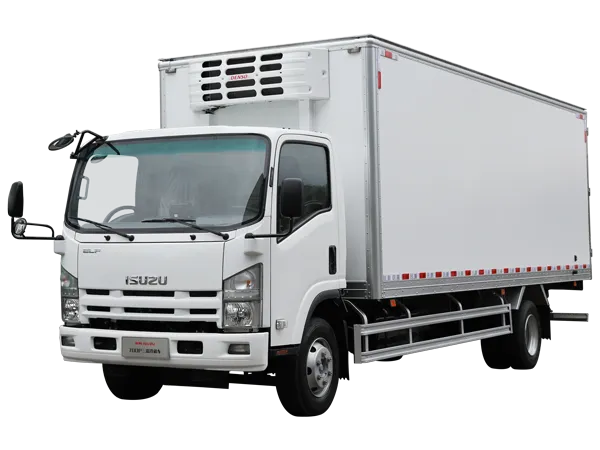

ISUZU Refrigerated Truck
Engine model | 4HK1TC51 |
Fuel type: | diesel |
Displacement | 5193 |
Engine power | 141 |
Torque | 513 |
For product pricing, customization, or other inquiries:
Appearance Color
Description
Advanced refrigeration technology: Isuzu refrigerated trucks are equipped with state-of-the-art refrigeration units for precise temperature control. These units maintain a constant temperature regardless of external weather conditions. The refrigeration system is usually driven by a separate diesel engine, ensuring that the cargo remains cold even when the truck’s main engine is switched off.
Outstanding insulation: High-quality insulation is used to prevent external heat from penetrating into the cargo area, maintaining the desired temperature. This insulation is carefully designed to provide good thermal efficiency, reducing the burden on the cooling unit and improving fuel economy.
Reliable and Durable: Isuzu trucks are known for their durability and reliability, and refrigerated models are no exception. They are built with rugged construction to withstand the rigors of long-distance transportation. Cargo areas are built with corrosion-resistant materials to ensure long service life and reduced maintenance costs.
Fuel-efficient design: Isuzu pays close attention to fuel efficiency. Its refrigerated trucks are aerodynamically optimized to reduce drag, which helps reduce fuel consumption. In addition, Isuzu’s engines are carefully engineered for fuel efficiency, making its reefer trucks cost-effective for long-distance transportation.
Basic Information
Engine model | 4HK1TC51 |
Fuel type: | diesel |
Displacement | 5193 |
Engine power | 141 |
Torque | 513 |
Carrying capacity
Gross mass(kg) | 9975 |
Total mass(kg) | 5605/5805 |
Load mass(kg) | 4175/3975 |
Wheelbase(mm) | 5200 |
Cab type: | single row cab |
Permitted number of passengers: | 3 |
Outline length(mm) | 8970 |
Outline width(mm) | 2305/2245 |
Outline dimension height(mm) | 3330/3410 |
Cargo box volumeInterior dimension of cargo box(mm) | 6820 |
Interior dimension width(mm) | 2035 |
Interior dimension of cargo box height(mm) | 1995/1960 |
Front wheelbase(mm) | 1680 |
Rear wheelbase(mm) | 1650 |
Leaf spring | 8/10+6 |
Front overhang(mm) | 1110 |
Rear overhang(mm) | 2660 |
Axle load(kg) | 3350/6625 |
Maximum speed | 110 |
