JMC Grand Avenue Bulletproof PUV
| Engine Model | JX4D23A6L |
| Total displacement (cc) | 2296 |
| Maximum power (kw/rpm) | 130/3200 |
| Maximum torque (N.m/rpm)） | 450/1500-2400 |
| emission standard | GB18352.6-2016 |
| Fuel type | diesel fuel |
For product pricing, customization, or other inquiries:

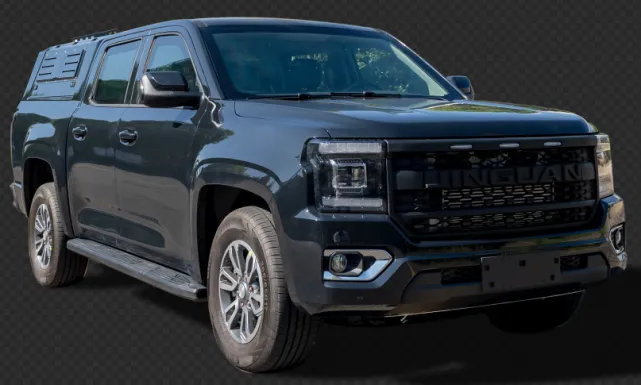

Appearance Color

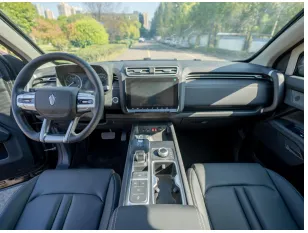

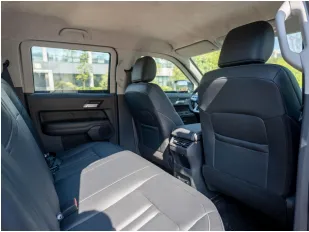

Interior Design
Description
If you need to know more details about the vehicle, please contact us on Whatsapp: +86 189 9665 1299
Basic Information
| Vehicle name、type | Protected vehicles | Vehicle parameters | Body weight (kg) | 2860 (including 5 persons 3185) | ||
| Standard level of protection | EN1522 B4+ anti-AK47 rifle | Gross vehicle weight (kg) | 3495 | |||
| Bullet caliber、type | 7.62×39 lead core | Carrying capacity (kg) | 320 | |||
| Engine parameters | Engine Model | JX4D23A6L | Overall length (mm) | 5450 | ||
| Total displacement (cc) | 2296 | Full width (mm) | 1935 | |||
| Maximum power (kw/rpm) | 130/3200 | Overall height (mm) | 1872 | |||
| Maximum torque (N.m/rpm)） | 450/1500-2400 | Wheelbase (mm) | 3270 | |||
| emission standard | GB18352.6-2016 | Wheelbase front/rear (mm) | 1620/1620 | |||
| Fuel type | diesel fuel | Minimum Ground Clearance (mm) | 220 | |||
| Sump Parameter Configuration | Chassis Model | JX1037TS0H6 | Minimum turning radius (m) | 5.9 | ||
| transmission | AT | Approach/Departure Angle (°) | 28/26 | |||
| braking system | Front and rear disc brakes | Maximum gradient (°) | 40 | |||
| suspensions | ahead | Double Wishbone Independent Suspension | Maximum speed (km/h) | 175 | ||
| empress | Non-independent suspension with leaf springs | Tire Model | 265/65R17 | |||
| Occupants (persons) | 5 | |||||
Configuration table
| serial number | sports event | Model specifications and related parameters | quantities | note |
| 1 | Bulletproof steel plate | EN1522 Class B4+ around occupant area, Class B4 on roof and floor | 1 set | |
| 2 | bulletproof glass | EN1063 Class B4+ | 1 Vehicle Sub | |
| 3 | Lifting Bulletproof Glass | Front and passenger doors EN1063 Class B4+ | 1 set | |
| 4 | Fuel tank protection | EN1522 Class B4+ | 1 set | |
| 5 | Battery protection | EN1522 Class B4+ | 1 set | |
| 6 | Tire protection | Tire inner support body | 5 set | |
| 7 | Reinforced door hinges | Jinguan customized | 1 Vehicle Sub | |
| 8 | Door Auxiliary Limit | Jinguan customized | 1 Vehicle Sub | |
| 9 | Trunk lid | Jinguan customized | 1 set |
