Qingling ISUZU KV100
| Pay Load (kg) | 2500~5000 |
| Double/Single | Single |
| Driver & Passenger | 1+1 |
| Model | ISUZU 4KH1CN5HS |
| Emission Standard | Euro V |
| Displacement (L) | 2.999 |
| Rated Power (kw/rpm) | 96(130HP)/1500 |
| Max. Torque (N.m/rpm) | 290/1500 |
For product pricing, customization, or other inquiries:
Appearance Color
Main technical parameters
| LIGHT TRUCK–600P SERIES CHASSIS (EURO IV) | |||||
| Wheelbase (mm) | 2490 | 2765 | 3360 | 3815 | |
| Drive Type | 4×2 | ||||
| Weight | GVW (kg) | 6480 | 6720 | 7300 | 7300 |
| Curb Weight (kg) | 2020 | 2050 | 2080 | 2110 | |
| Pay Load (kg) | 2500~5000 | ||||
| Overall | Length (mm) | 4785 | 5230 | 5900 | 6665 |
| Width (mm) | 1880 | 1880 | 1880 | 1880 | |
| Height (mm) | 2160 | 2200 | 2200 | 2200 | |
| Cab | Double/Single | Single | |||
| Driver & Passenger | 1+1 | ||||
| Engine | Model | ISUZU 4KH1CN5HS | |||
| Type | 4 Cylinders in line, | ||||
| turbo charging, inter cooling. | |||||
| high presure common-rail diesel injection system, | |||||
| liquid-cooled engine. | |||||
| Emission Standard | Euro V | ||||
| Displacement (L) | 2.999 | ||||
| Rated Power (kw/rpm) | 96(130HP)/1500 | ||||
| Max. Torque (N.m/rpm) | 290/1500 | ||||
| Transmission | manual | MSB-5S | |||
| Gear | 5 Forward + 1 Reverse | ||||
| Axle | Front Axle (T) | 2.2 | 2.2 | 2.2 | 2.2 |
| Rear Axle (T) | 3 | 4 | 4 | 4 | |
| Max. Speed (km/h) | 105 | 105 | 105 | 105 | |
| Brake System | Air /Oil | Oil Brake | |||
| Standard Configurations | Tire | 7.00R16 14PR | 7.00R16 14PR | 7.00R16 14PR | 7.00R16 14PR |
| Power Steering | ● | ● | ● | ● | |
| Radio | ● | ● | ● | ● | |
| A/C | ● | ● | ● | ● | |
| ABS | ● | ● | ● | ● | |
| Remark: | |||||
| 1. ● means standard configuration. ○ means the option is available. | |||||
| 2. All above information is for reference only, and will be updated timely without notice; | |||||
| 3. The listed models are part of the full products range,any special request will be available on request. | |||||

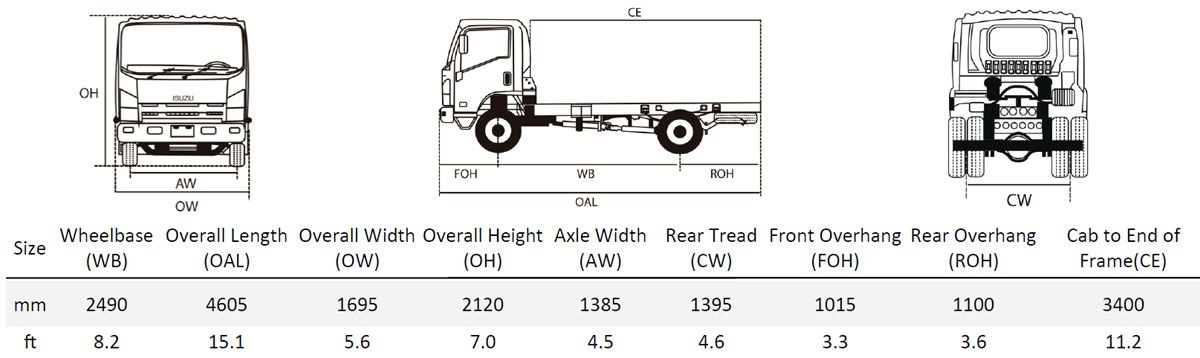

DIMENSIONS
