Qingling ISUZU KV100
| Dimensions: | 5995×2150,2200×2380 (mm) |
| Total mass: | 4495(Kg) |
| Curb weight: | 2565(Kg) |
| Trailer quality: | (Kg) |
| Anti-lock braking system: | Yes |
| Capacity: | (Person) |
| Approach/Departure Angle: | 19/16(°) |
| Axle load: | 1750/2745 |
| Maximum speed: | 115(km/h) |
For product pricing, customization, or other inquiries:
Appearance Color
Interior Design
Main technical parameters
| Dimensions: | 5995×2150,2200×2380 (mm) |
| Total mass: | 4495(Kg) |
| Curb weight: | 2565(Kg) |
| Trailer quality: | (Kg) |
| Anti-lock braking system: | Yes |
| Capacity: | (Person) |
| Approach/Departure Angle: | 19/16(°) |
| Axle load: | 1750/2745 |
| Maximum speed: | 115(km/h) |
| Tire Specifications: | 7.00R16LT 8PR.6.50R16LT 10PR |
| Rear track: | 1525,1655(mm) |
| Chassis: | QL1043BUHAY Class II Qingling Motors Co., Ltd |
| Fuel: | 10.20 |
| Emission Standards: | GB17691-2018 China VI. |
| Cargo box size: | 3790,4205×2050,2100×380,400(mm) |
| Load Mass Factor: | 0.75 |
| Rated load weight: | 1735(Kg) |
| Semi-addle: | |
| Front passengers: | 3 (persons) |
| Front/rear overhang: | 1110/1525(mm) |
| Wheelbase: | 3360(mm) |
| Number of axes: | 2 |
| Number of tires: | 6(pcs) |
| Front track: | 1640,1685,1690(mm) |
| Number of springs: | 1/1+1,2/2+1,2/3+1,2/3+2,3/1+1,3/3+2,3/3+3,3/4+3,3/5+2,3/5+3,6/6+6,7/6+5,7/6+4,8/6+5 |
| VIN Code: | LWLDMFMGxxxxxxxxx |
| Fuel Type: | diesel fuel |
Engine parameters
| Engine model | Displacement(ml) | Power(kw) | Engine manufacturer |
| 4KB1-TCG60 | 2499 | 96 | Isuzu (China) Engine Co., Ltd |
- the net engine power of 94kW, fuel consumption declared value 10.20L / 100km;
- side protective material: steel Q235, connection: bolted to the carriag e beam; rear protective material: steel Q235, plate thickness 2.0mm, connection: rear fender bracket bolted to the tail end of the frame Iongitudinal beam, r ear fender section size: 139×52 (mm), ground clearance: 460mm;
- the car optional braking system: when the installation of hydraulic braking system, AB S and its controller model / manufacturer correspondenee is: APG3550500A/ Zhejiang Asia-Pacific Electromechanical Co., Ltd., CM4YL / Guangzhou Ruili Bureau of Automotive Electronics Co., Ltd.; When installing the air brake system, ABS and its controller model / manufacturer correspondenee is: CM4XL-4 S /4M / Guangzhou Ruili Bureau of Automotive Electronics Co., Ltd.;
- the car with the optional chassis chrome corner plate, grille, cab rear blind window, wheel eyebrows, different styling style, different materials (aluminum / iron) rims; optional different styles of front and tail signage, different styles of rear-vie w mirrors; optional urea box, battery, fuel tank location, air filter style; optional half row cab;
- optional crates and side protection style, optional / without sp are tire;
- the model optional direct power supply ETC on-board device;
- curb weight does not include spare tires, fire extinguishers, on-board tools, etc.; Steeplechase weight 415kg, 400kg, side plate material SPCC, side plate thickness 1.2mm, bottom plate material SPCC, T700, WL700, patterned steel / ba mboo wood glued floor, bottom plate thickness 1.2mm, 1.8mm / 15mm. …
The ISUZU KV100 is an outstanding light truck with features such as strong power, high load capacity, and comfortable driving experience.
Details are as follows:
Efficient and reliable power system: Equipped with an Isuzu engine, it delivers strong power and incorporates technologies like high-pressure fuel injection and efficient EGR. It not only has good fuel adaptability but also effectively controls fuel consumption. Matched with an Isuzu transmission, its gears adopt anti-deformation processing technology, ensuring reliability and durability with a transmission efficiency of up to 98%. In addition, multiple Isuzu drive axles with different speed ratios are available to meet the needs of various working conditions.
Vehicle lightweight design: Adopting the “three-light” technologies of “lightweight design”, “lightweight materials”, and “lightweight manufacturing”, it reduces weight by more than 15% while meeting the vehicle’s rigidity requirements. It complies with the blue license regulations, facilitating license registration, increasing cargo capacity, and further reducing fuel consumption.
Spacious cargo compartment: The large cargo compartment design can fully meet the needs of users with large-volume and large-quantity goods in urban short-distance transportation such as e-commerce express delivery and commercial wholesale.

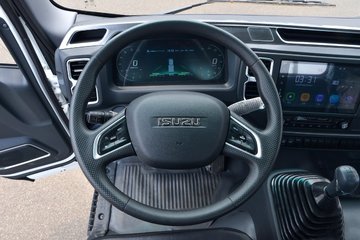

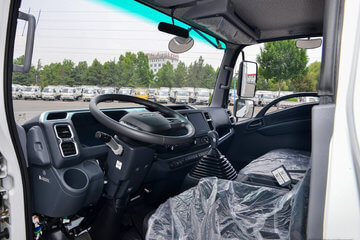

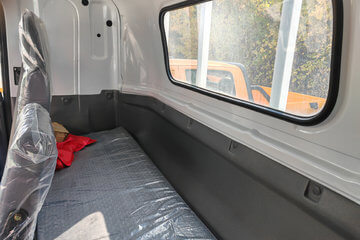

Comfortable and safe cab: It adopts the latest Isuzu ELF exterior design, with a classic double “V” shaped air intake grille that is full and attractive. The cab interior is spacious and can seat three people. It is equipped with intelligent configurations such as a full LCD instrument panel, multi-functional steering wheel, and automatic air conditioning, providing a comfortable driving experience. Meanwhile, the cab adopts a structural energy-absorbing design to enhance collision resistance, and is equipped with air brake + parking brake, ensuring timely braking and effectively protecting the safety of people and cargo.
More ISUZU vehicle details: ISUZU 100P, ISUZU KV600, ISUZU 700P, ISUZU FTR, ISUZU 600P……
