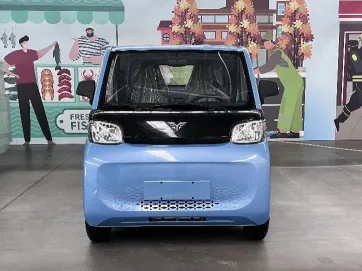

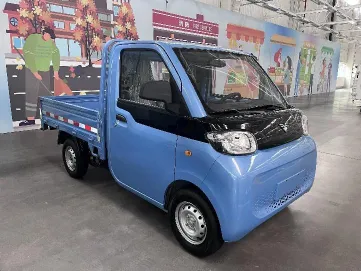

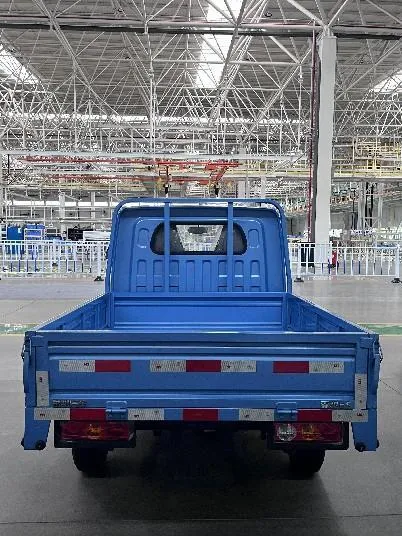

REACH Electric Truck TC101-16
| Brand: REACH | TC101-16 |
| Cabin type | Single cabin |
| Cargo box type | flat bed |
| wheelbase | 2630 |
| Curb weight(kg) | 850 |
| Rated load(kg) | 800 |
For product pricing, customization, or other inquiries:
REACH Electric Truck TC101-16 Parameters
| Model No. | Brand: REACH | TC101-16 |
| Cabin type | Single cabin | |
| Cargo box type | flat bed | |
| wheelbase | 2630 | |
| Curb weight(kg) | 850 | |
| Rated load(kg) | 800 | |
| Total GVW | 1700 | |
| Basic Parameter list | ||
| Length（mm） | 3820 | |
| Width（mm） | 1480 | |
| Height（mm） | 1680 | |
| Wheelbase（mm） | 2630 | |
| Cargo box length（mm) | 2015 | |
| Cargo box width（mm) | 1400 | |
| Cargo box Height（mm) | 320 | |
| Minimum Ground Clearance (Curb Weight/Full Load) (mm) | 160/140 | |
| Body structure | separate frame | |
| Doors | 2 | |
| Seats | 2 | |
| Max speed（km/h） | ≥71 | |
| **Battery*Motor*Range | ||
| Battery type | Lithium Iron Phosphate | |
| Battery Brand | GUOCHUANG | |
| Battery capacity(Kwh) | 15.4kwh | |
| Electric Motor Brand | Hepu Electrics | |
| Max Torque（N.m) | 110 | |
| Max Power（KW) | 30 | |
| Rated Power（KW) | 15 | |
| Cruising Range Load (km) CLTC | 150 | |
| Fast Charge/Slow Charge | Slow Charging 8~10h | |
| Chassis/Steering Configuration | ||
| Drive mode | Rear-Wheel Drive | |
| Front suspension type | MacPherson Independent Suspension | |
| Rear suspension type | Leaf Spring Non-independent suspension | |
| Leaf spring pcs | 3+1 | |
| Steering Mode | Electric Power Steering | |
| Wheel/Brake Configuration | ||
| Energy Recycle | ● | |
| Front brake type | disc | |
| Rear brake type | drum | |
| Parking brake type | hand brake | |
| Tire type | 145R12 LT 8PR | |
| Spare wheel Size | — | |
| ABS | ● | |
| （EBD/CBC） | ● | |
| Exterior Configuration | ||
| Rim material | Steel rim | |
| Outter handle | Black color | |
| Interior Configuration | ||
| Inner rearview mirror | ● | |
| / | Primary/Passenger Visor | ●/— |
| Floor mat（PVC） | ● | |
| Seatbelt fasten remind | Driver side | |
| Anti-Theft Configuration | ||
| Mechanical key | ● one | |
| Remote Key Fob | ● one | |
| Seat Configuration | ||
| Seat material | Fabric | |
| Driver seat adjust type | Front and back adjust | |
| Multi-Media Configuration | ||
| Radio | ● | |
+ | Central colorful screen + Bluetooth Call | ● |
| USB | ● | |
| Central Control Instruction Panel | ● | |
| Reverse image | ● | |
| Reverse redar | — | |
| Console | ● | |
| Lights | ||
| day light | — | |
| Halogen headlights | ● | |
| Front Fog Lamps | — | |
| Rear Fog Lamps | ● | |
| High-mounted Brake Light | — | |
| Windows Glass | ||
| Manual Windows | — | |
| Power Windows | ● | |
| Air condition Configuration | ||
| AC and Heater | ● | |
| Others | ||
| Driver airbag | — | |
| Co-driver airbag | — | |
| Manual adjust Exterior mirror | ● | |
| Bone wiper | ● | |
| Front Tow Hook | ● | |
| Warning Triangle | ● | |
| Reflective Vest | ● | |
| Cargo Box Sill Outer | — | |
| Wheel cover | — | |
| All-inclusive Carpet | ● | |
| Headliner（Hard） | ● | |
| Pinboard Cargo Box | — | |
| Frame Seperating Cabin and Cargo Box | ● | |
| Side Door of Cargo Box | — | |
| Color | White/Blue/Green | |
| Date of Manufacture | 2024 | |
