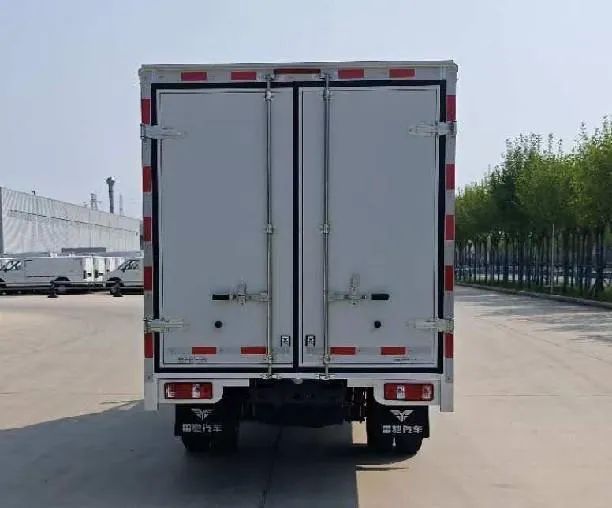

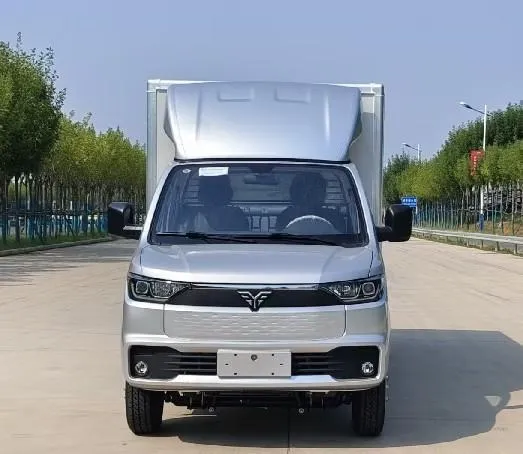

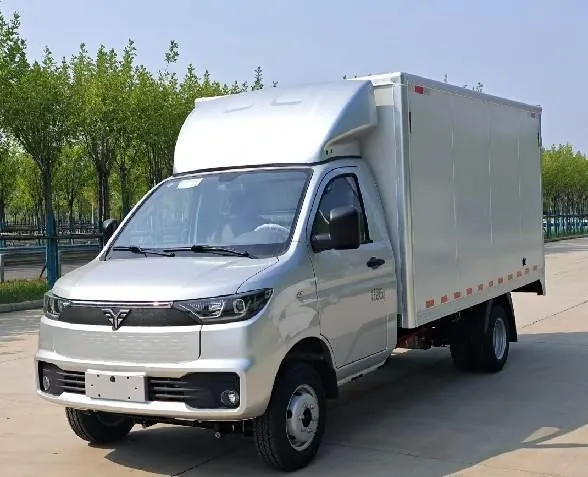

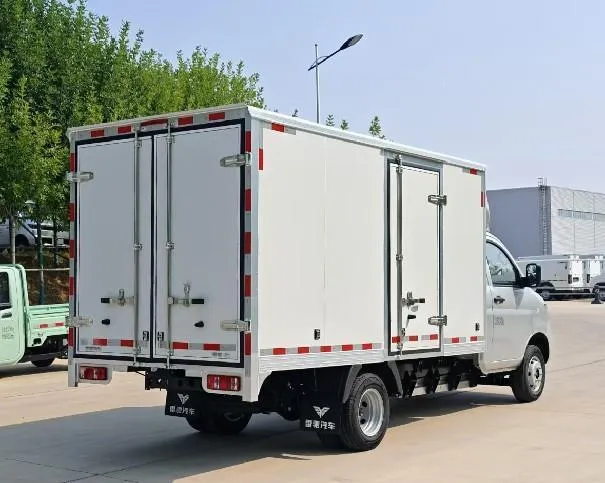

REACH Electric Truck TF101-7
| Cabin type | Single cabin |
| Cargo box type | Cargo Box |
| wheelbase | 3600 |
| Curb weight(kg) | 2235 |
| Rated load(kg) | 1335 |
For product pricing, customization, or other inquiries:
REACH Electric Truck TF101-7 Parameters
| TF101-7 | |||
| color | / White/Silver | ||
| Cabin type | Single cabin | ||
| Cargo box type | Cargo Box | ||
| wheelbase | 3600 | ||
| Curb weight(kg) | 2235 | ||
| Rated load(kg) | 1335 | ||
| Total GVW | 3495 | ||
| Basic Parameter list | |||
| Length（mm） | 5965 | ||
| Width（mm） | 1880 | ||
| Height（mm） | 2650 | ||
| Wheelbase（mm） | 3600 | ||
| Cargo box length（mm) | 3700 | ||
| Cargo box width（mm) | 1750 | ||
| Cargo box Height（mm) | 1750 | ||
| Minimum Ground Clearance (Curb Weight/Full Load) (mm) | 170 | ||
| Body structure | separate frame | ||
| Doors | 2 | ||
| Seats | 2 | ||
| Max speed（km/h） | 80 | ||
| **Battery*Motor*Range | |||
| Battery type | Lithium Iron Phosphate | ||
| Battery Brand | EVE | ||
| Battery capacity(Kwh) | 55.06kwh | ||
| Battery cooling mode | air cooling | ||
| Max Torque（N.m) | 270 | ||
| Max Power（KW) | 90 | ||
| Rated Power（KW) | 45 | ||
| Cruising Range Load (km) CLTC | 280km | ||
| Slow Charge(h) | ●9h | ||
| Fast Charge(h) | ●1h | ||
| Chassis/Steering Configuration | |||
| Drive mode | Rear drive | ||
| Front suspension type | Leaf Spring dependent suspension | ||
| Rear suspension type | Leaf Spring dependent suspension | ||
| Leaf spring pcs | 5/3+2 | ||
| Steering Mode | Electric Power Steering | ||
| Wheel/Brake Configuration | |||
| Energy Recycle | ● | ||
| Front brake type | disc | ||
| Rear brake type | drum | ||
| Parking brake type | hand brake | ||
| Tire type | 185R14LT 8PR | ||
| Spare tire Size | full size spare tire | ||
| ABS | ● | ||
| （EBD/CBC） | ● | ||
| Exterior Configuration | |||
| Rim material | Steel rim | ||
| Outter handle | Black color | ||
| Interior Configuration | |||
| Inner rearview mirror | — | ||
| Sun visor | ●/－ | ||
| Floor mat（PVC） | ● | ||
| Seatbelt fasten remind | Driver side | ||
| Anti-Theft Configuration | |||
| Mechanical key | ● one | ||
| Remote Key Fob | ● one | ||
| Seat Configuration | |||
| Seat material | Fabric | ||
| Driver seat adjust type | Front and back adjust | ||
| Multi-Media Configuration | |||
| Radio | ● | ||
| Central colorful screen + Bluetooth Call | ● | ||
| USB | ● | ||
| Interior Remote control door locks | ● | ||
| Reverse image | ● | ||
| Normal instrument | ● | ||
| Lights | |||
| day light | — | ||
| Halogen headlights | ● | ||
| Front Fog Lamps | ● | ||
| Rear Fog Lamps | ● | ||
| High-mounted Brake Light | ● | ||
| Windows Glass | |||
| Manual Windows | — | ||
| Power Windows | ● | ||
| Air condition Configuration | |||
| Heater / AC and Heater | ○/● | ||
| Others | |||
| Driver airbag | — | ||
| Co-driver airbag | — | ||
| Manual adjust Exterior mirror | ● | ||
| Front Wipers with bracket | ● | ||
| Front Tow Hook | ● | ||
| Warning Triangle | ● | ||
| Reflective Vest | ● | ||
| Jack | ● | ||
| fender | ● | ||
| Headliner（Hard） | ● | ||
| Pinboard Cargo Box | ● | ||
| Side Door of Cargo Box | — | ● | |
| Remark● standard ◎optional —none | |||
| Date of Manufacture | 2025 | 2025 | |
