Qingling RHD EV truck

Condition:	Brand New
Export Ready:	B2B vehicle supply with configuration, documentation, and shipping coordination
MOQ:	2 Units

For product pricing, customization, or other inquiries: Whatsapp：+86 19332933694 Whatsapp：+86 19332933694

alt="Sahiyoo Motors advantages: Top 3 ranked Isuzu dealer, 20 years experience, in-person inspection available.

Description
Parameters
other

Our Qingling truck products

The Qingling RHD EV truck is a battery-electric cargo truck platform designed for right-hand-drive fleet and commercial transport applications. The EVM100 configuration combines a 100.46 kWh CATL lithium iron phosphate battery with a Bosch permanent magnet synchronous motor. Its listed range is up to 515 km under a constant-speed test method. Actual range depends on payload, body type, route, speed, climate, and auxiliary power use.

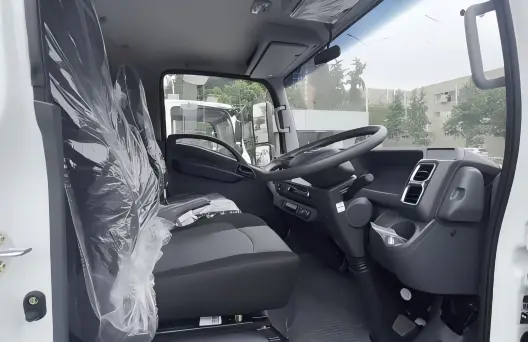

·Right Hand Drive Configuration: Specified RHD cab with three seats for right-hand-drive operating markets.
·100.46 kWh CATL LFP Battery: The single-pack lithium iron phosphate battery includes battery heating for route and climate planning.
·Bosch Electric Drive: Permanent magnet synchronous motor rated at 90 kW with 167 kW peak power and 420 N·m peak torque.
·Commercial Load Capacity: The supplied configuration lists a 4,990 kg gross vehicle mass, 2,290 kg curb mass, and 2,505 kg payload.
·CCS2 Charging: Supports DC fast charging and AC charging through a European-standard CCS2 port; this configuration includes 20 kW AC charging.
·Fleet Safety and Control: ABS with EBD, hill-start assist, reversing radar, hydraulic power steering, and two-stage adjustable regenerative braking.

Built for Urban and Regional Cargo Operations

A 3,360 mm wheelbase and a listed turning diameter of no more than 13.6 m support warehouse access, city distribution, and regional delivery routes. The chassis is rated for a maximum speed of 100 km/h and gradeability of at least 30%. Cargo body design, final dimensions, axle loading, and local registration requirements should be confirmed for each destination and application before production.

Electric Drivetrain and Charging

The Bosch electric drive axle reduces mechanical drivetrain complexity and provides regenerative braking for frequent stop-and-go work. The CATL LFP battery operates within a specified discharge temperature range of -20°C to 55°C and a charging range of 0°C to 55°C. Both fast and AC charging are supported. Buyers should confirm local connector compatibility, site power, charge time targets, and route energy demand before ordering.

Specification	Qingling EVM100 RHD EV truck
Vehicle category	Pure electric cargo truck chassis
Vehicle model	QL1040BEVBNHAY
Configuration	Premium edition, JEA01 Bosch
Drive position	Right hand drive
Seating	3
Overall dimensions	5,955 x 1,960 x 2,260 mm
Wheelbase	3,360 mm
Front and rear track	1,640 / 1,525 mm
Front and rear overhang	1,110 / 1,485 mm
Gross vehicle mass	4,990 kg
Curb mass	2,290 kg
Listed payload	2,505 kg
Maximum speed	100 km/h
Gradeability	At least 30%
Minimum turning diameter	No more than 13.6 m
Listed driving range	Up to 515 km, constant-speed test method
Motor brand and type	Bosch permanent magnet synchronous motor
Motor power	90 kW rated / 167 kW peak
Motor torque	214 N·m rated / 420 N·m peak
Battery	CATL lithium iron phosphate
Battery capacity	100.46 kWh, single pack
Battery energy density	159.56 Wh/kg
Charging	DC fast charging and AC charging, 20 kW AC configuration
Charging port	CCS2
Suspension	Leaf springs, 3 / 3+2
Tyres	6.50R16 12PR
Service brake	Front and rear drum brakes, hydraulic braking with vacuum assist
Parking brake	Cable operated
Steering	Hydraulic power steering
Driver assistance	ABS+EBD, hill-start assist, reversing radar
Cab equipment	LCD instrument panel, electric air conditioning, power windows, remote key, one-touch start, 2 USB ports
Operating temperature	Charging 0°C to 55°C; discharging -20°C to 55°C

Buyer Questions About the Qingling RHD EV truck：

A: Yes. The supplied EVM100 configuration specifies a right-hand-drive cab with three seats.

A: The configuration sheet lists up to 515 km using a constant-speed test method. Real-world range varies with payload, body, traffic, speed, terrain, temperature, and air-conditioning use.

A: The truck uses a 100.46 kWh CATL lithium iron phosphate battery and a Bosch permanent magnet synchronous motor rated at 90 kW with 167 kW peak power.

A: It uses a CCS2 charging port and supports DC fast charging plus AC charging. The supplied configuration is identified with 20 kW AC charging.

A: The configuration lists a 2,505 kg payload, a 2,290 kg curb mass, and a 4,990 kg gross vehicle mass. Final legal payload depends on the completed body and destination rules.

A: The chassis can support urban distribution, parcel delivery, retail replenishment, and other logistics bodies when the body design and local approval requirements are matched to the project.

A: Provide the destination country and port, required body type, expected payload, route distance, charging conditions, and order quantity. The minimum order quantity is two vehicles. CBU, SKD, or CKD supply can be discussed according to the project and destination requirements.

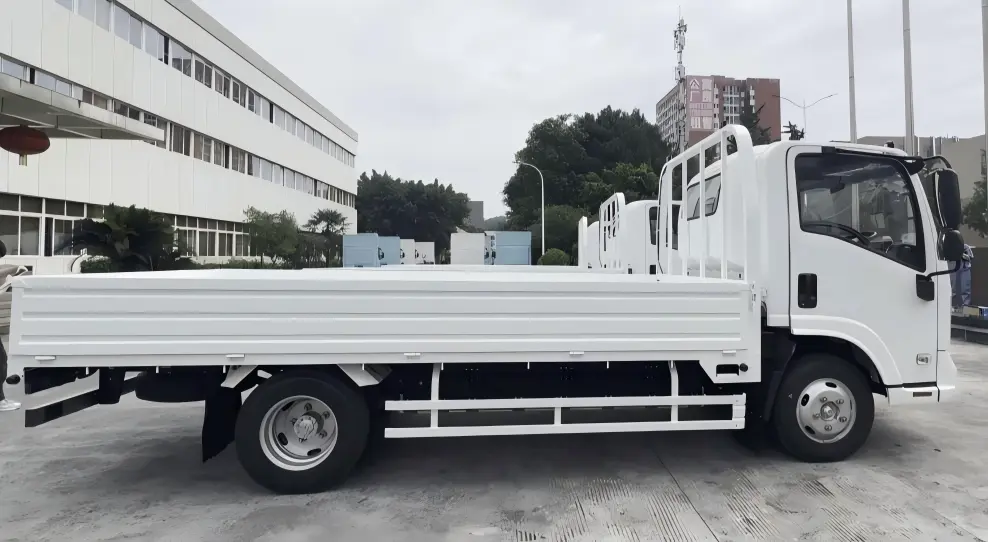

A: The Qingling EVM100 right-hand-drive electric truck can be configured with refrigerated, drop-side, stake-sided, and box bodies for cold-chain transport, general cargo, and urban delivery. Other body options can be discussed according to your business needs. Body selection must match the chassis specifications, payload requirements, and destination-market regulations.
